Clamping sleeves

Clamping sleeves

From over 30 years Hydroservice is leader in the design and manufacturing of sleeves and clamping systems.
Clamping sleeves are created to provide manufacturers and designers of machines locking systems ensuring maximum reliability with  smaller  sizes  compared  to  traditional  solution.  Thanks  to  their  particular  constructional  feature,  these  sleeves  allow  a  quick,  stable and precise axial and/or radial clamping of all cylindrical metal parts of which slippage and /or rotation shall be prevented.

From over 30 years Hydroservice is leader in the design and manufacturing of sleeves and clamping systems.

Clamping sleeves are created to provide manufacturers and designers of machines locking systems ensuring maximum reliability with  smaller  sizes compared to traditional  solution.

Thanks  to  their  particular  constructional  feature,  these  sleeves  allow  a  quick,  stable and precise axial and/or radial clamping of all cylindrical metal parts of which slippage and /or rotation shall be prevented.

Benefits

  • Little dimension
  • High clamping and unclamping speed
  • Rigid and reliable clamping
  • Portability
  • Free and easy assembly
  • High clamping force even at low pressure
  • Long life and reliability in time
  • Custom-made

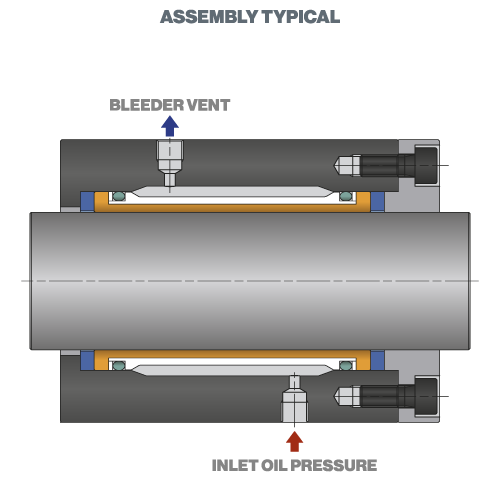

Scheme

Technical data

Materials

Sleeve body:

Bronze, steel and special alloys

Shell:

POM

O-ring:

VITON o NBR

Back-up ring:

PTFE

Technical specifications

Operating pressure:

from 10 to 400 bar (depending on Ø)

Fluid suggested for operation:

mineral oil

Suggested viscosity range:

from 10 to 400 mm2/s

Temperature range:

from -20°C to + 100°C
